Cottonwood Graph Query Engine
4th September 2025

Cottonwood

Management

  • Week 1:
    1. Design application architecture
    2. Define inter-team interfaces
    3. Define intra-team interfaces
    4. Implement correctly
  • Week 2-4: Optimize

General Implementation Approach

  • Simple, fix interfaces
    • Independent development
    • Free to optimize implementation
  • Tests, debug_asserts,
    no unsafe
    • Rapid iteration
    • Bugs easier to find
  • Focus on correctness
  • Focus on general optimizations (not edge cases)

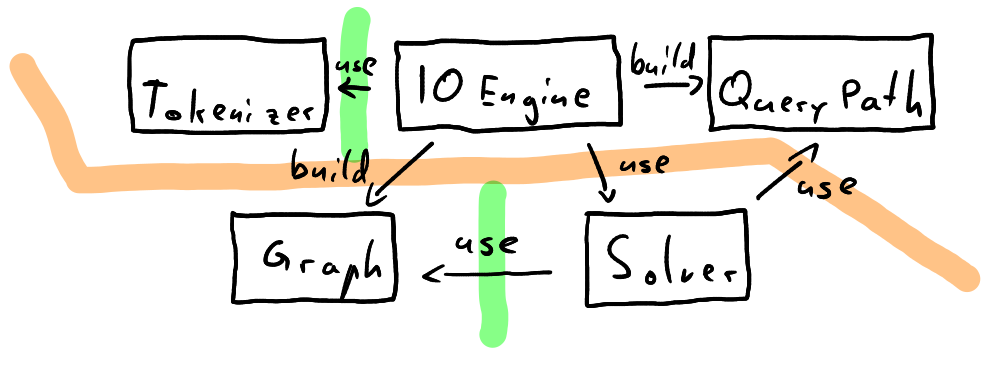

Architecture Structure

Architecture Structure

DFA

(A) [-B-> (C)]{2,-} (D)

DFA Squashing

(A) [-B-> (C)]{1,-} (C) [-B-> (C)]{1,-} (D)
(A) [-B-> (C)]{2,-} (D)

Heuristic & Start Everywhere

() -->{1,-} () --> (A) -B->{1,-} ()
  • Insight: Not all start positions are equal
  • Heuristic
    • Idea: many restrictions at the start
    • Approach: use DFA and rarity of labels
    • Restrictions: graph structure unknown
  • DFS uses startposition and turns around

BFS and when to use it

  • () -->{1,-} ()
  • (A) -B->{1,-} (C)
  • (A) -B->{1,7} (C)
  • (A) [-B-> (M)]{1,-} (C)
  • ... --> (A) [-B-> (M)]{1,-} (C)
  • not: (A) -B->{3,-} (C)
Optimization Benchmarks
Optimization Benchmarks
Custom Memplus Benchmark
PAIRS ()-->()-->()-->()--> ...

Lessons learned

  • Getting work done in parallel & Test driven is fast
  • Great interfaces are great
  • Designing Heuristics is hard
  • Rust Ownership is challenging but
    • Rust has great tooling
    • Iterators are cool
    • no UB; easier debugging
